Elitech RC-5 Temperature Data Logger, Data Recorder, USB 2.0 Graphic Report, 32000 Points with Internal Sensor

Please note that the calibration of Third-Party Lab ISO/IEC 17025:2017 may take about 5-7 working days also the default calibration temperature points are -10°C; 0°C; 40°C and if you need more calibration points, please write to let us know.

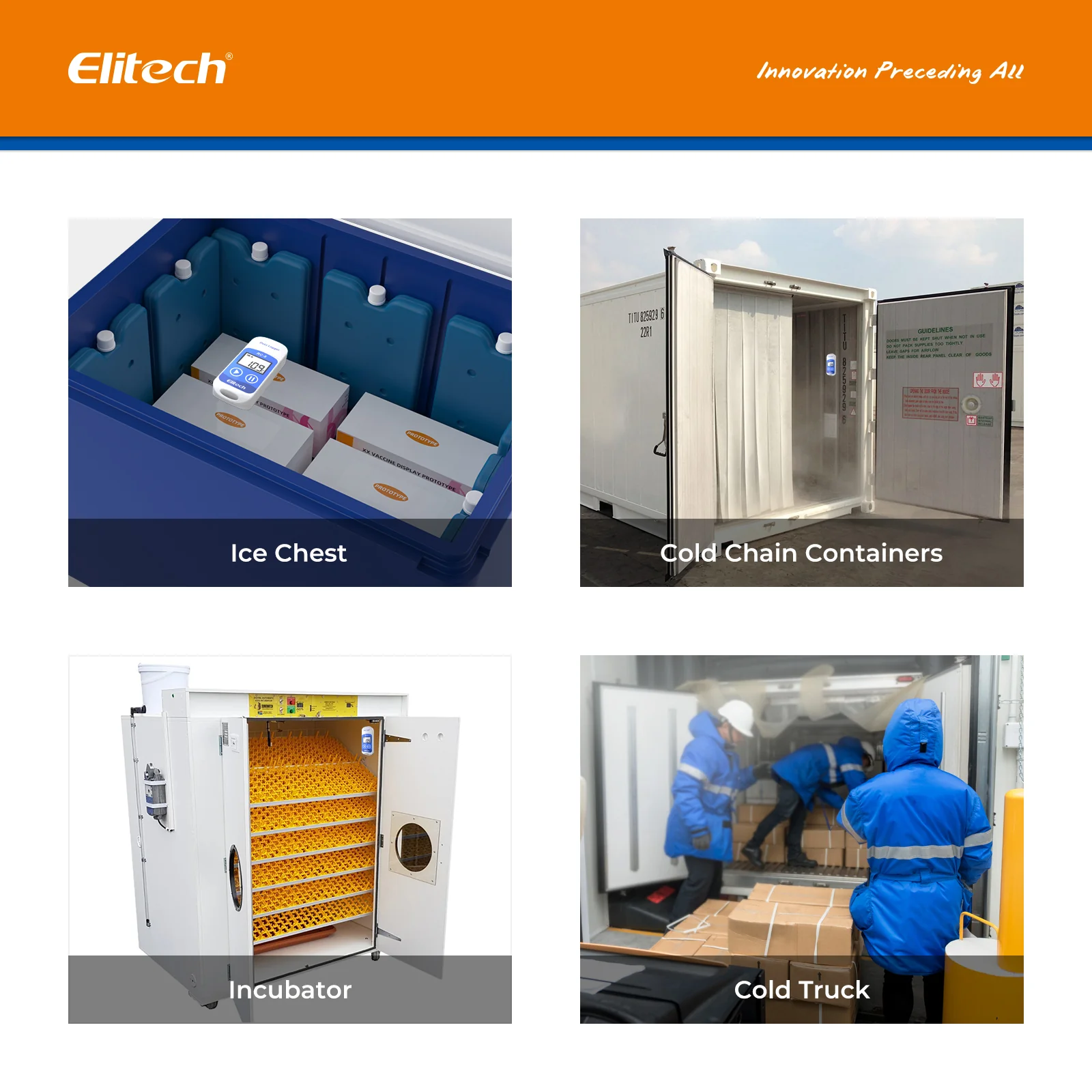

This USB temperature data logger is mainly used for temperature recording during storage and ocean/air/highway transportation of foodstuff, medicine, chemicals and other products, especially widely used in all kinds of warehousing, logistics and cold chain, such as refrigerated containers, refrigerated trucks refrigerated package, cold storage, laboratory, etc. or in large-sized global supply chain businesses.

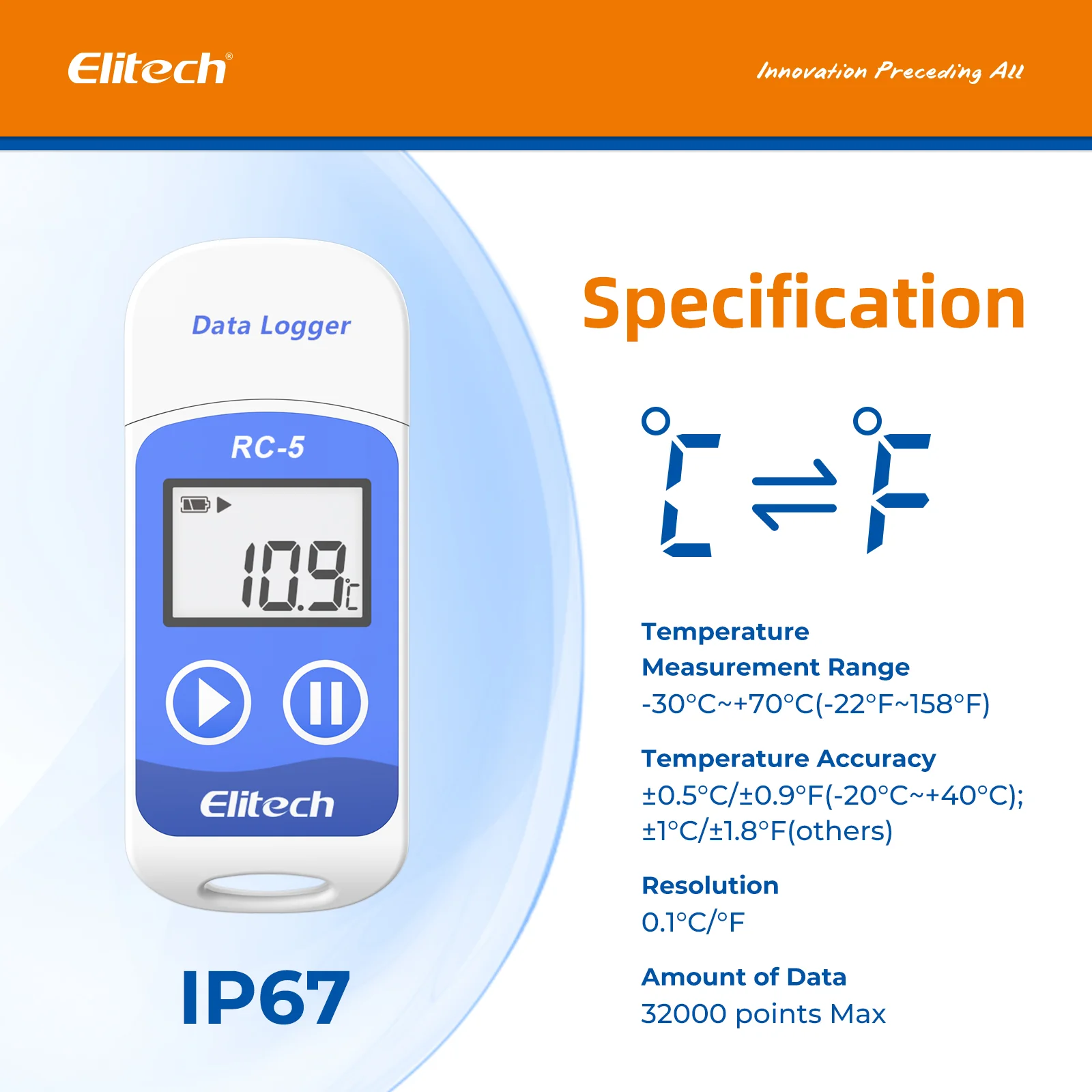

LCD Visual Display LCD visual display, interface is simple and easy to use, easy to operate, convenient to check your data at any time. 1. Over Temperature Alarm & Upper/Lower Limits can be set 2. MAX/MIN values available 3. Large permanent data memory of 32000 points	USB Plug and Play The simple USB interface allows you to measure conditions and instantly transfer them onto your PC, so you can create reports and share information faster. Instructions: Long press key of switch more than 4 seconds, after the interface display appear triangle mark, it indicates that the instrument has already started to record.	Accurate and Stable Monitoring 1. Temperature measuring range: -30 °C ~ 70 °C; Resolution: 0.1 °C 2. Accuracy: ±0.5 °C(-20 ℃~+40 ℃); others, +1 ℃ 3.Temperature unit: ℃ or ℉ optional 4. Record interval can be set on software 5. Waterproof: IP67

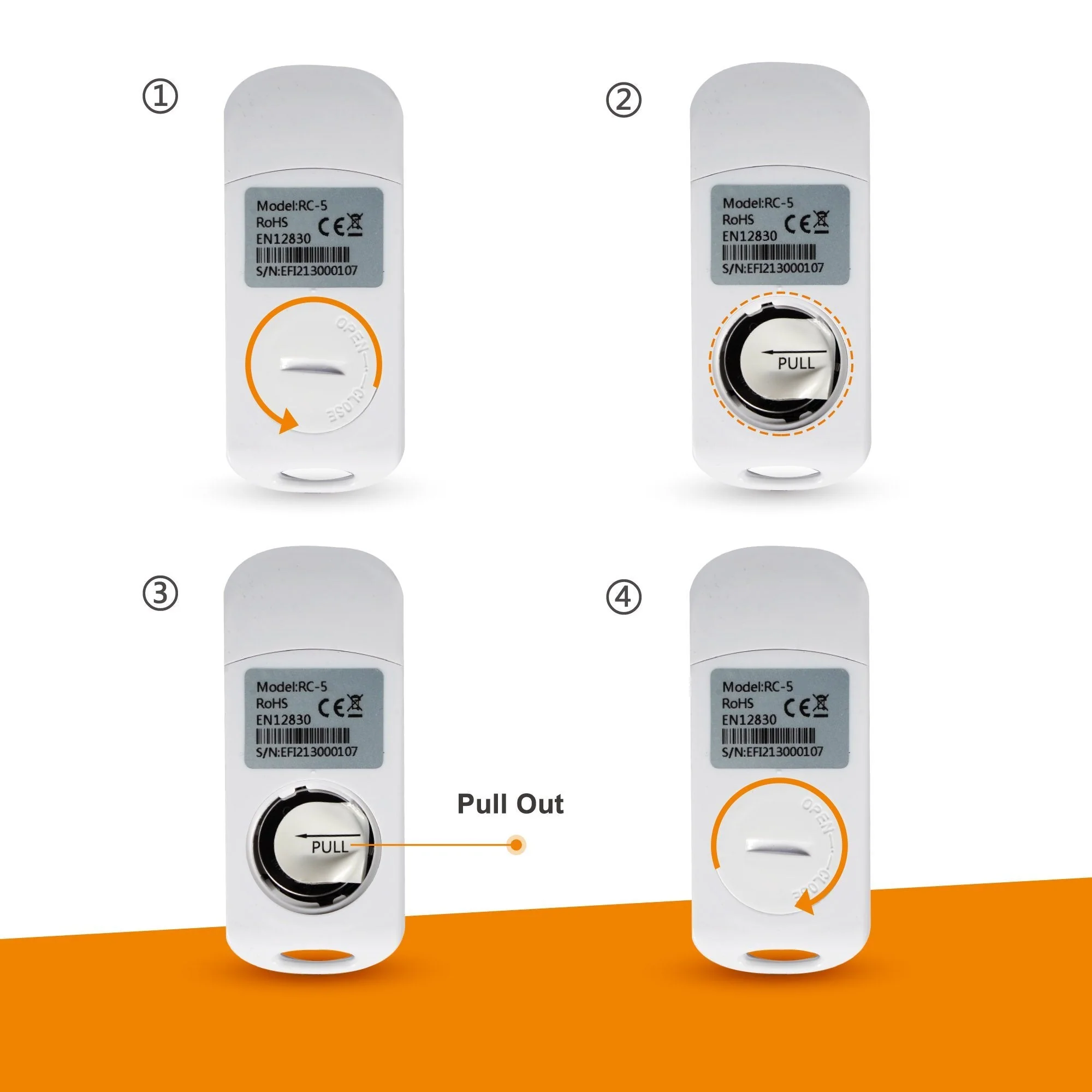

How to Install the Battery

1. Use a proper tool(such as a coin) to loosen the battery cover.

2. Install the battery with “+” side upward and keep it under the metal connector.

3. Put the cover back and tighten the cover.

Battery life: in normal temperature, if the record interval sets as 15 minutes, it could be used above one year.

Note: Do not remove the battery when the logger is running. Please change it when necessary.

Technical Parameters:

1. Record interval: 10 s~24 hours adjustable
2. Sensor: Internal NTC thermal resistor, no external sensor supported
3. Communication interface: USB
4. Power supply: CR2032 battery
5. CE certificate
6. Multiple uses: data can be removed and start a new round by our software

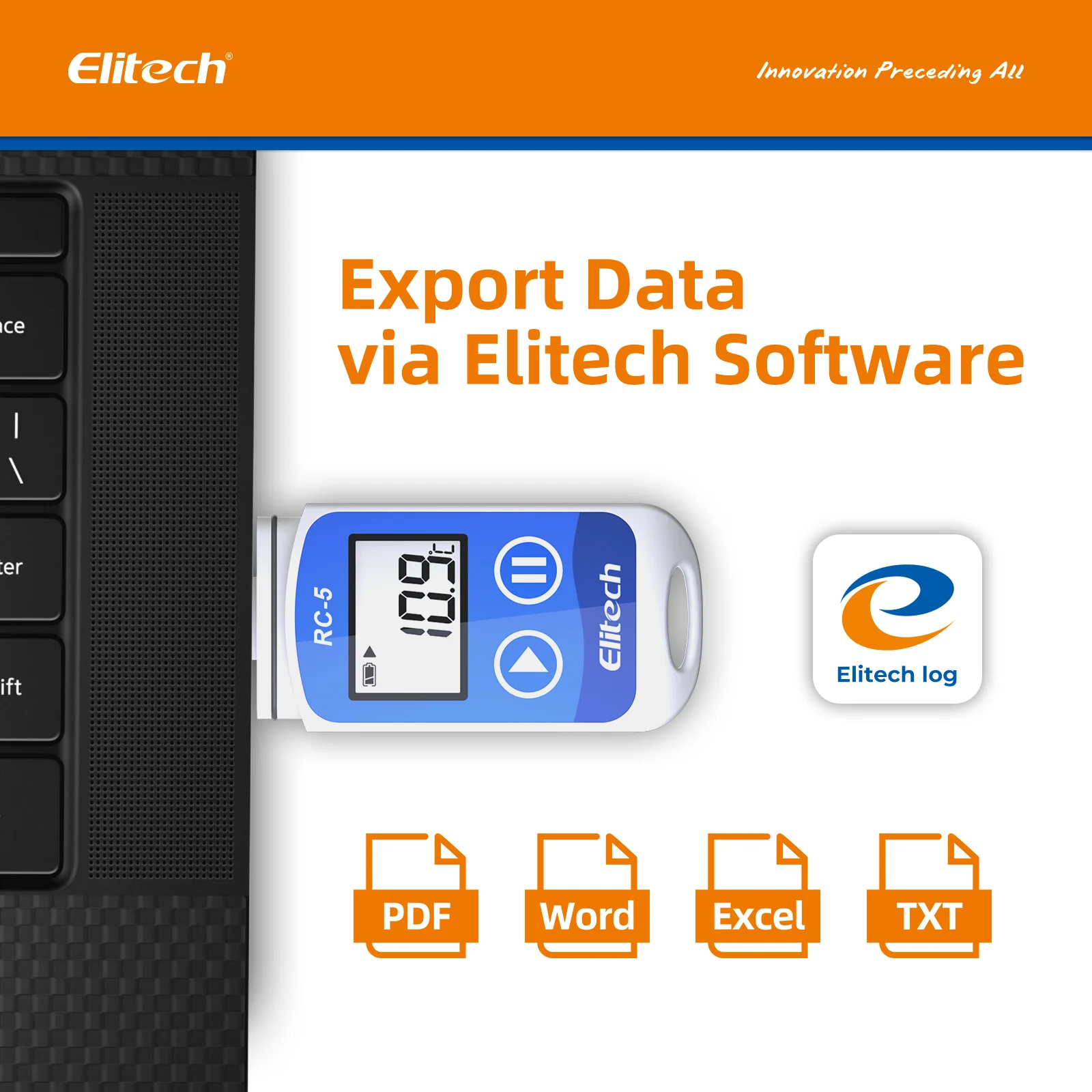

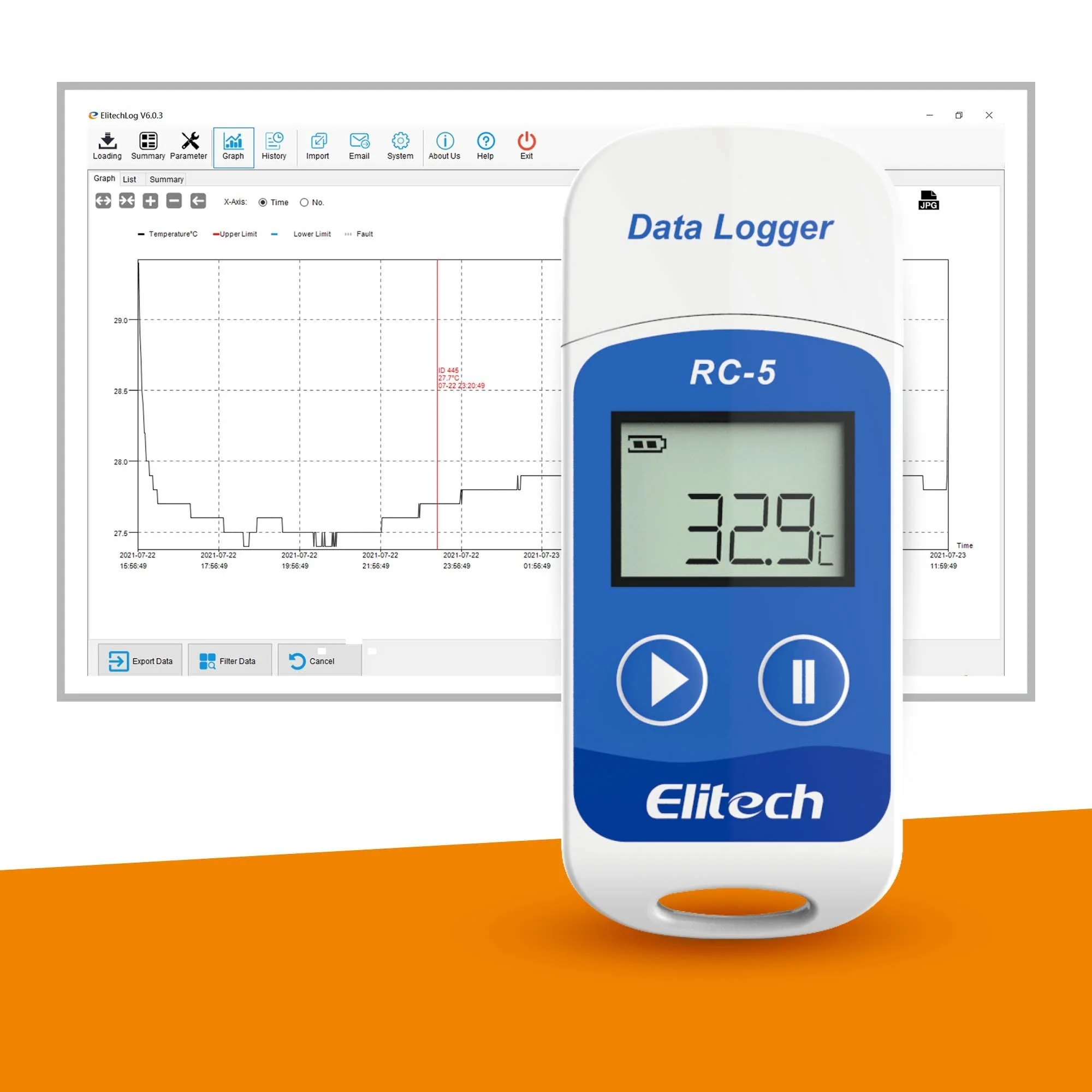

7. Data could be queried, saved, printed and exported in Word/Excel/TXT /PDF format.

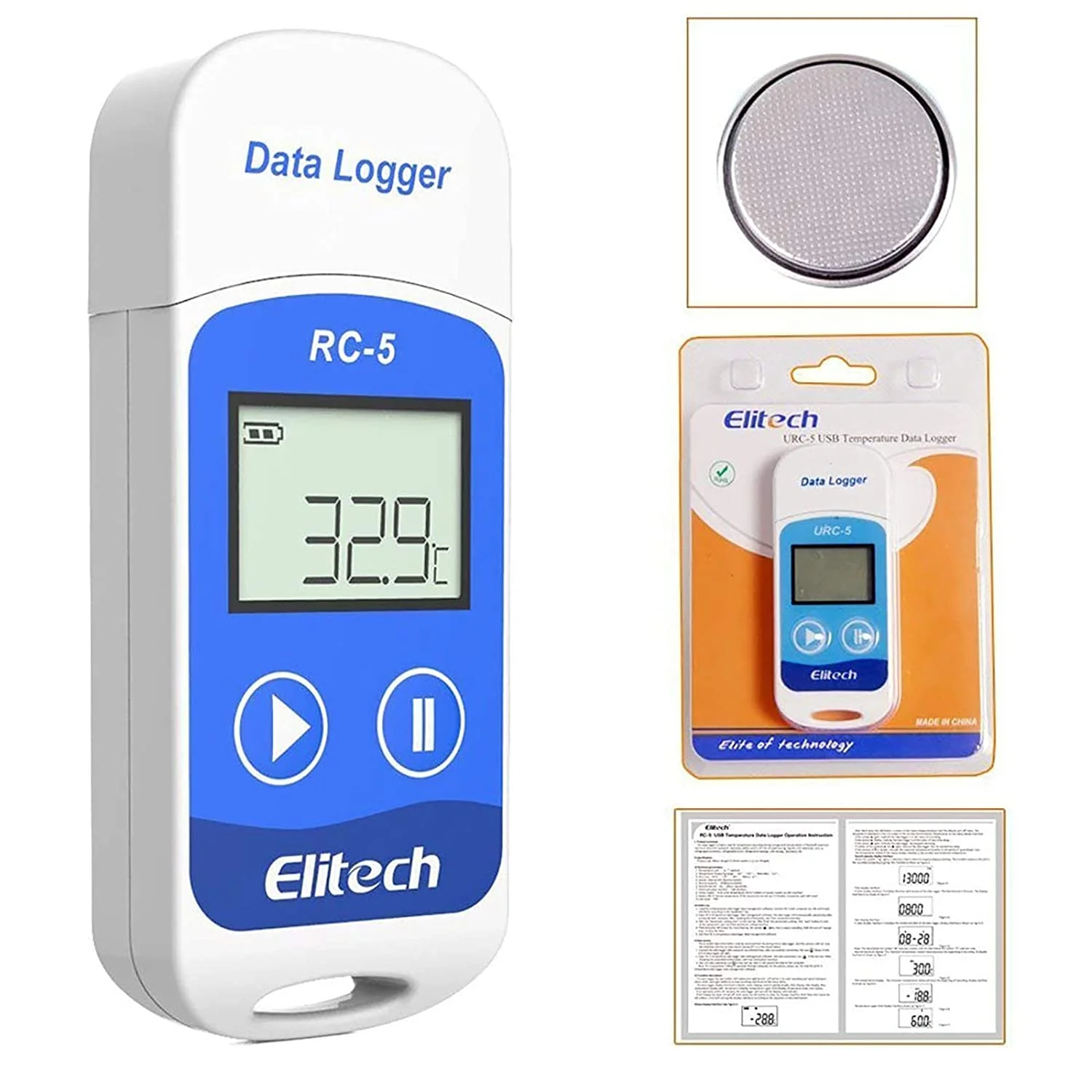

8. Package Included: 1 x Elitech RC-5 Data Logger; 1 x CR2032 Battery; 1 x User Manual

Elitech RC-5 Related Documents

Elitech RC-5 Temperature Data Logger User Manual Muti-language
