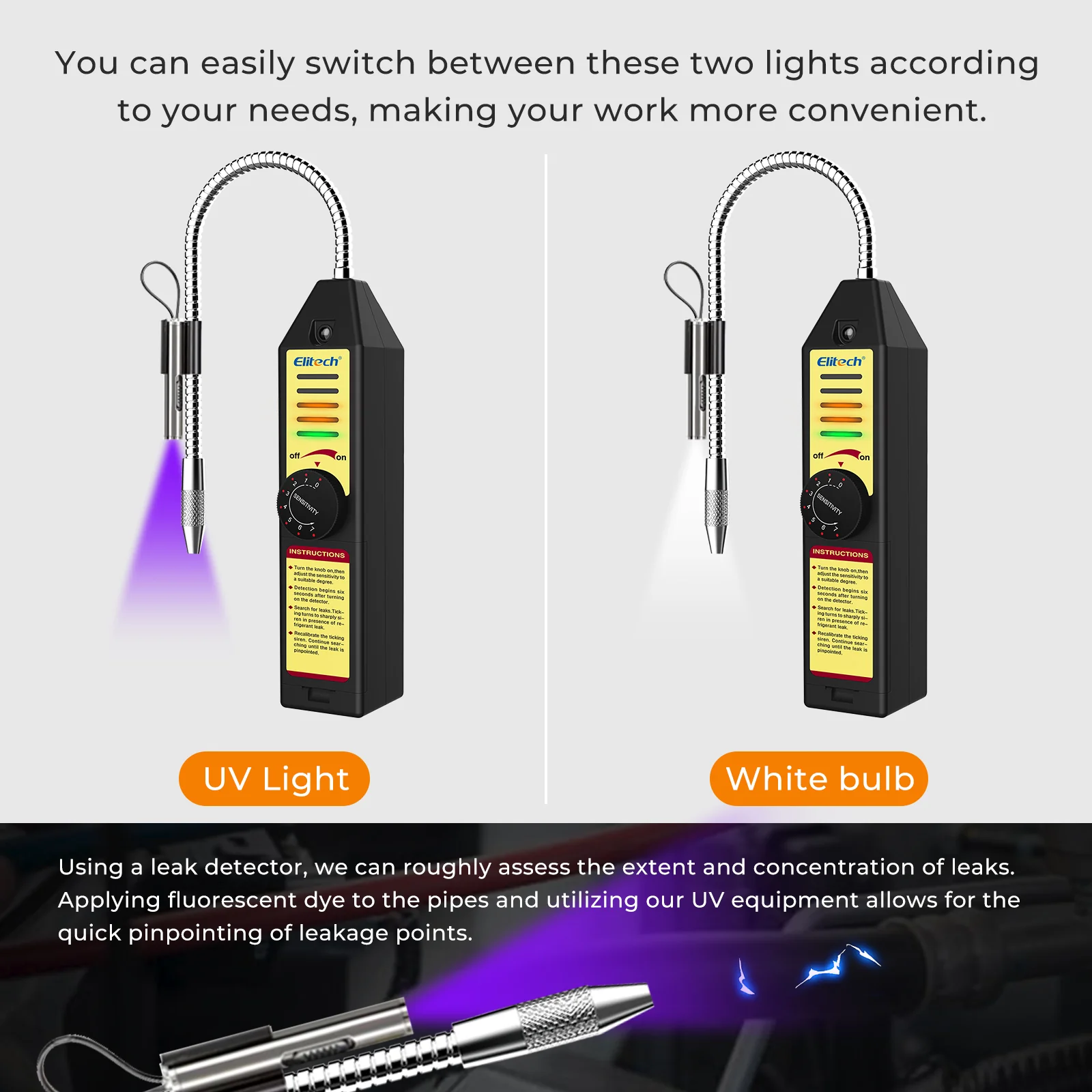

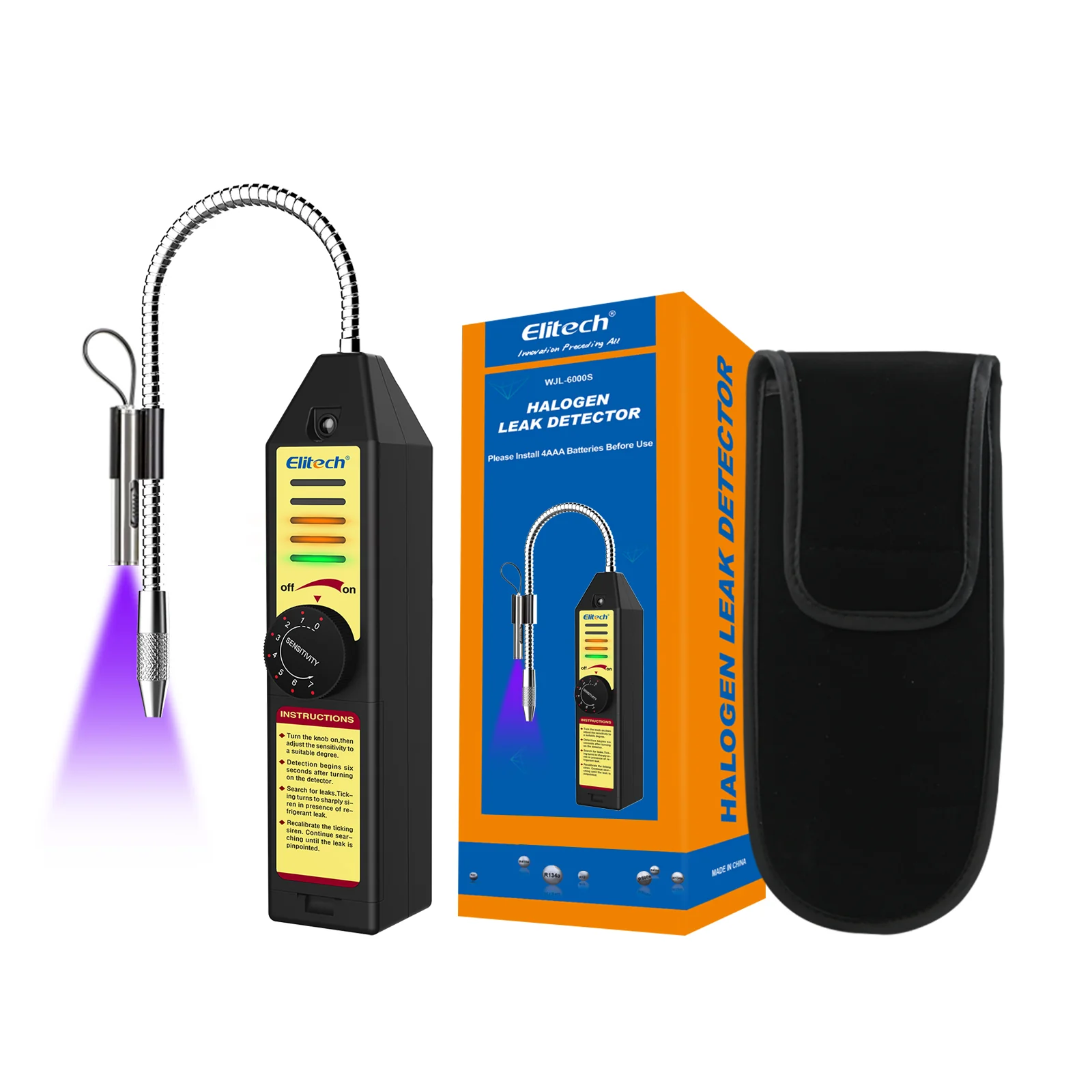

Elitech WJL-6000SUV Refrigerant Heat Pump Leak Detector with UV LED Corona Sensor AC Halogen Gas Leaking Detection
Upgrade version of WJL-6000 refrigerant leak detector. WJL-6000SUV (with UV LED) made improvements in many aspects to realize more reliable and quicker detection. It uses newly designed high-precision MIC and ultra-low power consumption circuit design, ensuring much more stable operation and durable batteries. Moreover, its highest sensitivity increased to 5g/yr. The 5 LED indicator lights allow users to get the idea of leakage amount more vividly.

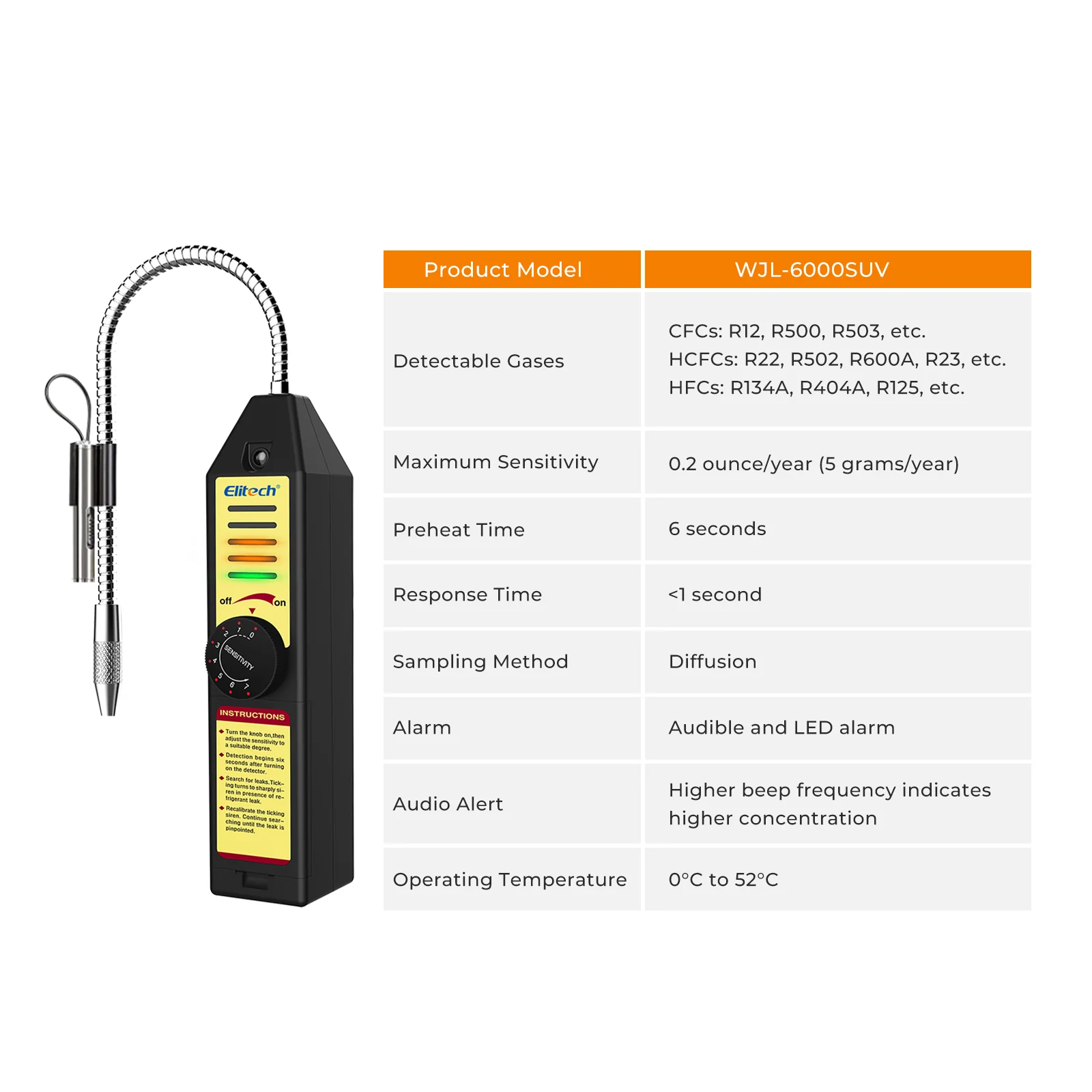

WJL-6000SUV (with UV LED) Specification
| Sensor Type | Corona |
| Sensor Sensibility | Highest: 5g/year |
| Detectable Gases | CFCs, HFCs, HCFCs, and blends |
| Response Time (S) | <5 seconds |
| Reset Time (S) | <3 seconds |
| Warm-up Time(S) | ≤10 seconds |
| Power | 4x AAA Alkaline batteries (Not Included) |
| Operating Temperature | 0°C~ 52°C (30°F~ 125°F) |
| Alarm Mode | Audible and Visual |
| Tool Size | 153*37*35mm (6.02*1.46*1.38in.) |
| Package Size | 229*65*65mm (9.02*2.56*2.56in.) |
| Package Weight | 240g (0.53lb) |
| Certification | CE, SAE-1627 |
WJL-6000SUV Feature
- Detects All Common Refrigerants* It detects R11, R22, R32, R-1234yf, R134a, R404a, R410A and all halogenated refrigerants including HFCs, CFCs and HCFCs.

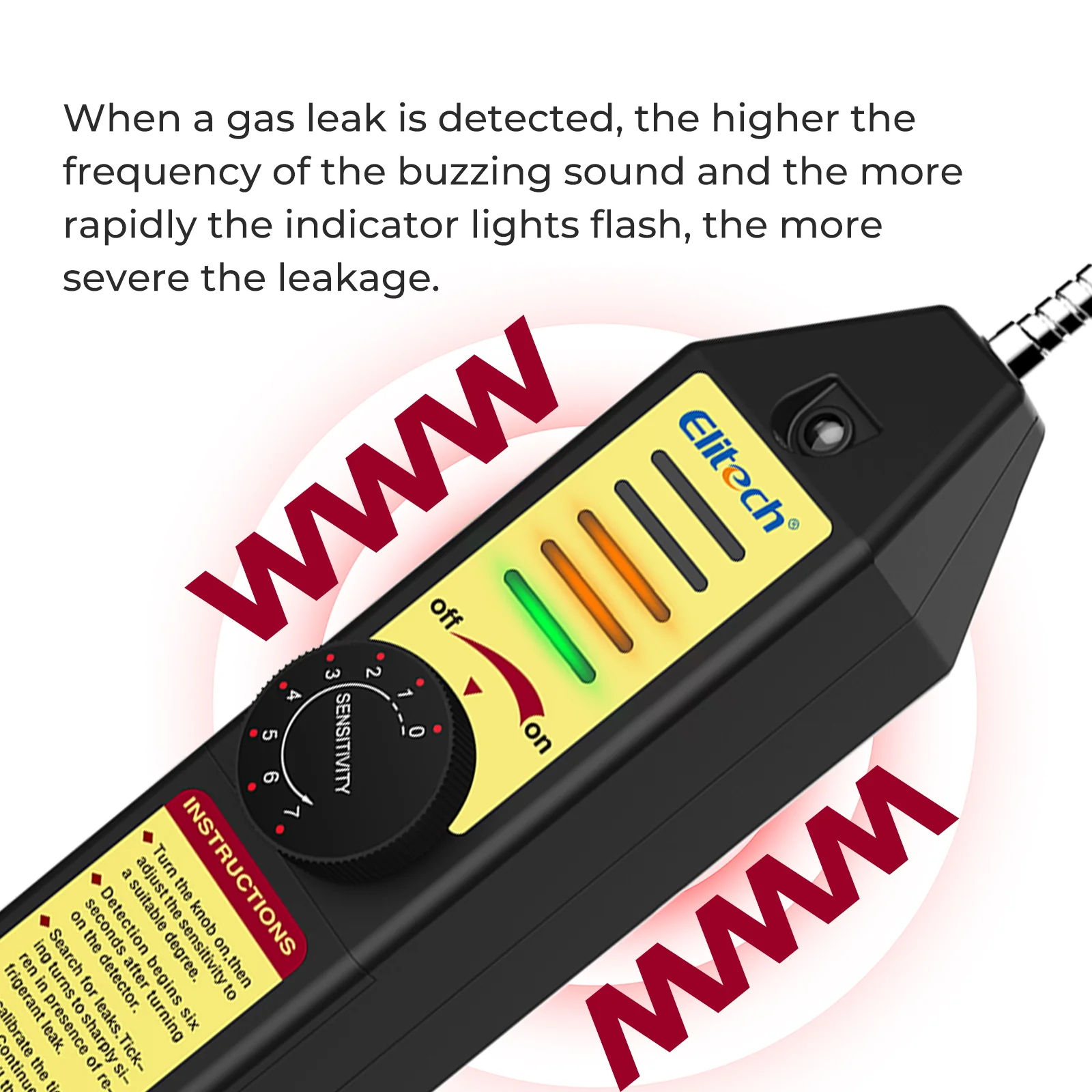

- Gas Concentration Indicators* 5 LED indicators to vividly display the concentration of gas leakage.
- Sensitivity Adjustable in 7 Levels* With the highest sensitivity of 5g/yr, the detector can detect very small leakage of refrigerant. Turn the knob to adjust sensitivity in 7 different levels to quickly pinpoint leakage in various working conditions.
- Quick Response* Quick response instantaneously within 5 seconds to detect promptly.

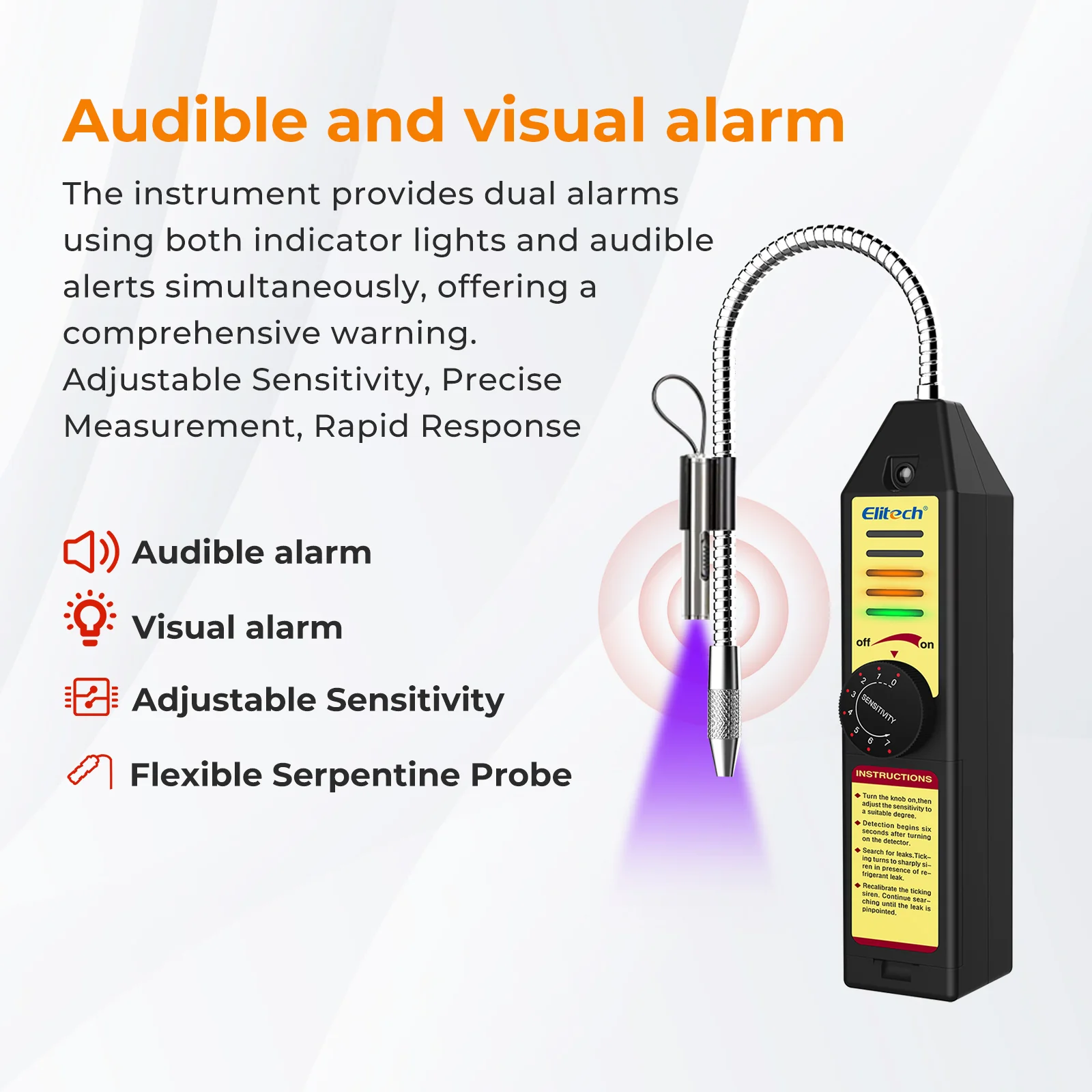

- Visual and Audible Alarm* Both LED light flash alarm and buzzer alarm to alert leakage.
 |
 |
 |
|
Detects All Common Refrigerants* R11, R22, R134a, R404a, R410A and all halogenated refrigerants including HFCs, CFCs, HCFCs and blends |
7 Sensitivity Levels* To quickly pinpoint leakage in various conditions |
Quick Response* Quick response within 5 seconds for prompt detection |
 |
 |
 |
|

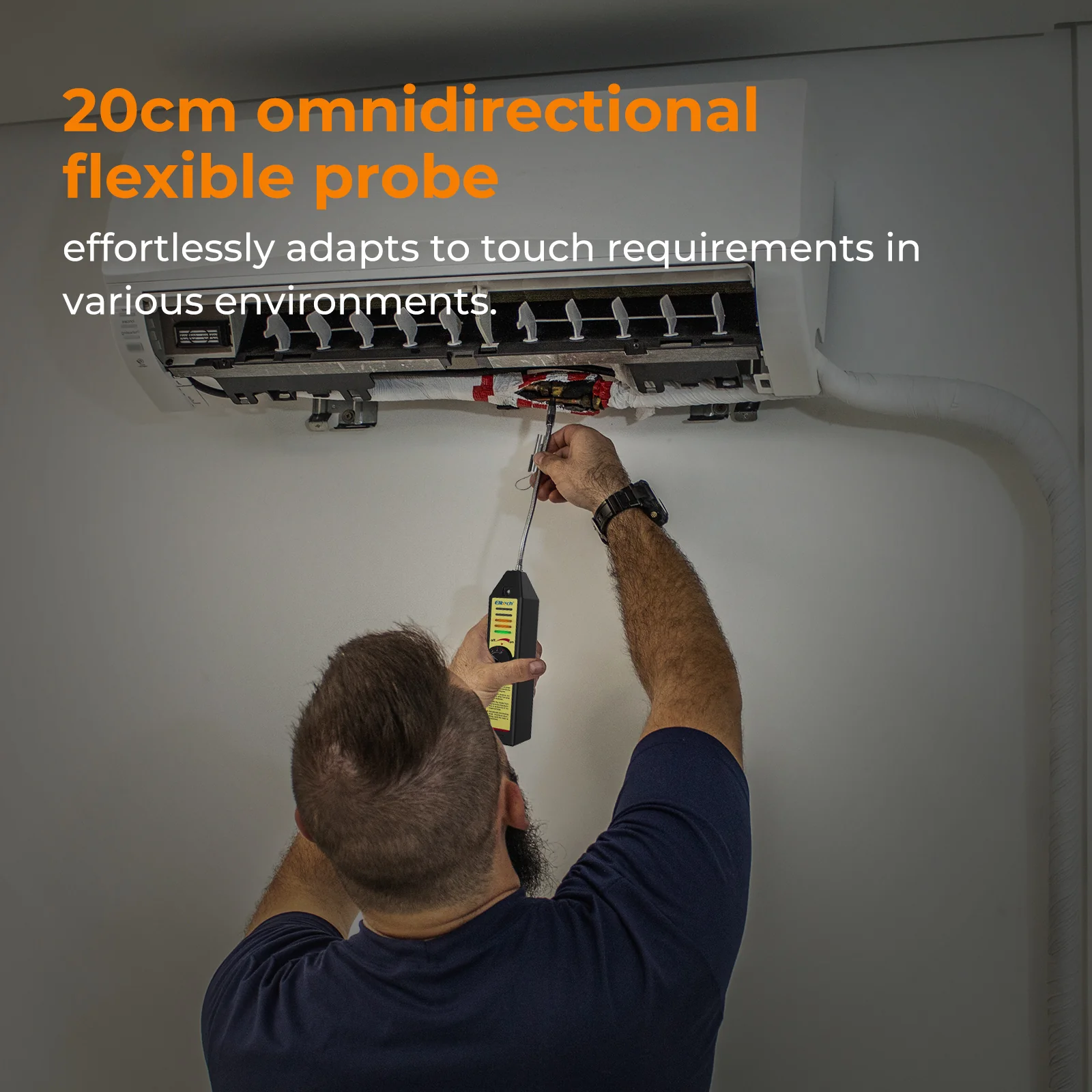

20cm Flexible Probe* Convenient to detect leakage in hard-to-reach locations |
Power Indicator* Dual-color LED light to indicate battery power, Green indicates sufficient power while orange stands for low power |
Visual and Audible Alarm* Both LED light flash alarm and buzzer alarm to alert leakage |
Refrigerants Instruction
| Type | Details |
| CFCs | R11、 R12、 R13、 R502、 R503 |
| HCFCs | R22、 R123、 R124、 R141b、 R142b、 R402A、 R402B、 R408A、 R409A |
| HFCs | R134a、 R410A、 R407C、 R417A、 R404A、 R507、 R23、 R508A、 R508B、 R152a、R32 |
| Blends | AZ-50. HP62. MP39,etc. |
| PFC | PFC-14、 PFC-116、 PFC-218 |
| C2H4F2 | R152a Difluoroethane |
