Elitech EK-3010 is a temperature controller with touch screen buttons. It is suitable for temperature control of refrigeration or heating equipment. Due to its touch buttons, Elitech equipped the EK series with a key lock function to avoid accidental touches that may cause the parameters to change. The touch button adopts high-precision digital capacitance measurement technology, which can avoid various interferences such as water droplets; compared with mechanical buttons, there is no mechanical action, long life, and stable performance.

One-way sensor input: temperature probe sensor.
One-way control output: refrigeration/heating equipment.

With temperature measurement, temperature display, temperature control, temperature calibration, over-temperature alarm and sensor fault alarm function. One-touch restoration of original setting values for easy re-adjustment of parameters.

Elitech EK-3010 temperature controller is suitable for temperature control of cold storage, freezer, operating console refrigeration equipment and heating equipment.

EK-3010 Parameter and Main Function

EK-3010 Feature

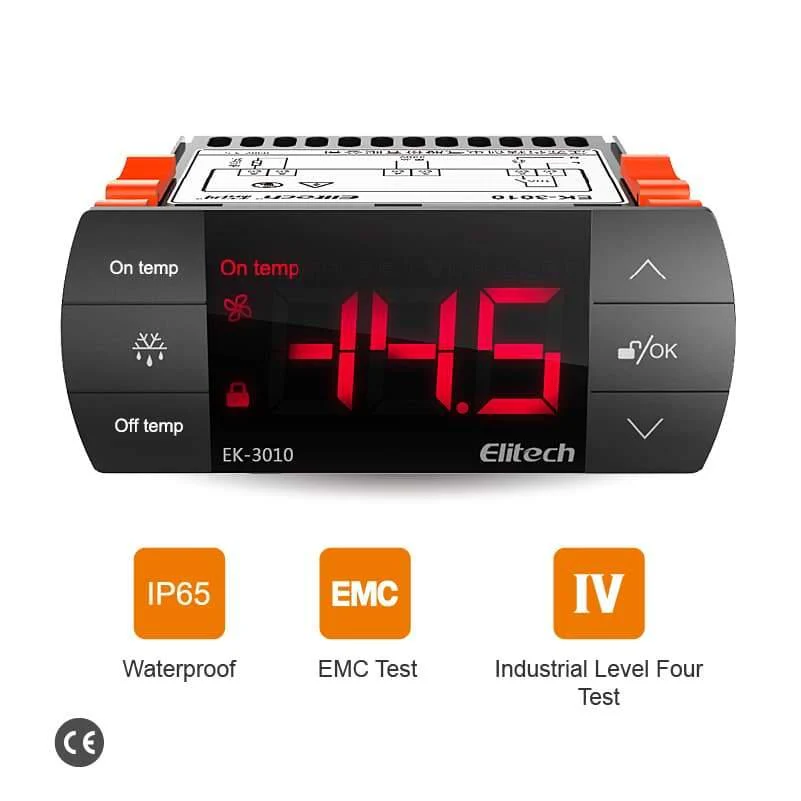

Touch Keys, Good User Experience* High precision capacitive touch keys for greater reliability	Stable & Reliable* Pass EMC test, industrial level four test. Front protection level reaches IP65	Waterproof & Dustproof One-piece front panel design for greater protection against moisture and dust
Buzzer Alarm Output, More Reliable* Sensor fault alarm and over-temperature alarm	Easy to Use, No Menu* Single-click to complete the general settings directly, no need to enter the menu	Wide Control Range, Wider Application* The temperature control range is -40℃～85℃, Can be used for multiple applications

EK-3010 Panel Instruction

EK Series Touch Key Temperature Controller Comparison Chart

Model	Control Output					Sensor	Communication Function
	Cooling	Heating	Defrost	Fan	Light	Defrost Sensor
E-1000	10A	10A	/	/	10A	/	/
EK-3010	Cooling / Heating (10A)		/	/	/	/	/
EK-3020	10A	/	10A	/	/	/	/
EK-3021	10A	/	10A	/	/	√	/
EK-3030	10A	/	10A	10A	/	√	/
EK-3030E	10A	/	10A	10A	/	√	485 interface

Elitech One-way Control Output Temperature Controller Comparison Chart

Function	Model	Relay Output	Input		Others
			Temperature Sensor	Defrost Sensor	℃/℉
Refrigeration	STC-8000HX	10A	√	/	/
	ECS-11	30A	√	/	√
Refrigeration/Heating	EK-3010	10A	√	/	/
	ECS-02CX	10A	√	√	√
	ECS-961neo	17A	√	/	/
	ECS-16	30A	√	/	/
Refrigeration/Heating/Alarm	STC-200	10A	√	/	/
