Elitech MTC-6040 Temperature and Humidity Controller with Cooling, Fan, Humidity/ Lighting/ Alarm Control Output

Product image 1
Product image 2
Product image 3
Product image 4

Elitech MTC-6040 Temperature and Humidity Controller with Cooling, Fan, Humidity/ Lighting/ Alarm Control Output

Elitech MTC-6040 Temperature and Humidity Controller with Cooling, Fan, Humidity/ Lighting/ Alarm Control Output

 // Not Available in the EU *

Elitech MTC-6040 Temperature and Humidity Controller are widely used in cool cabinets, medicine cabinets, foodstuff freezers, agricultural greenhouses, medicine refrigerators, etc.

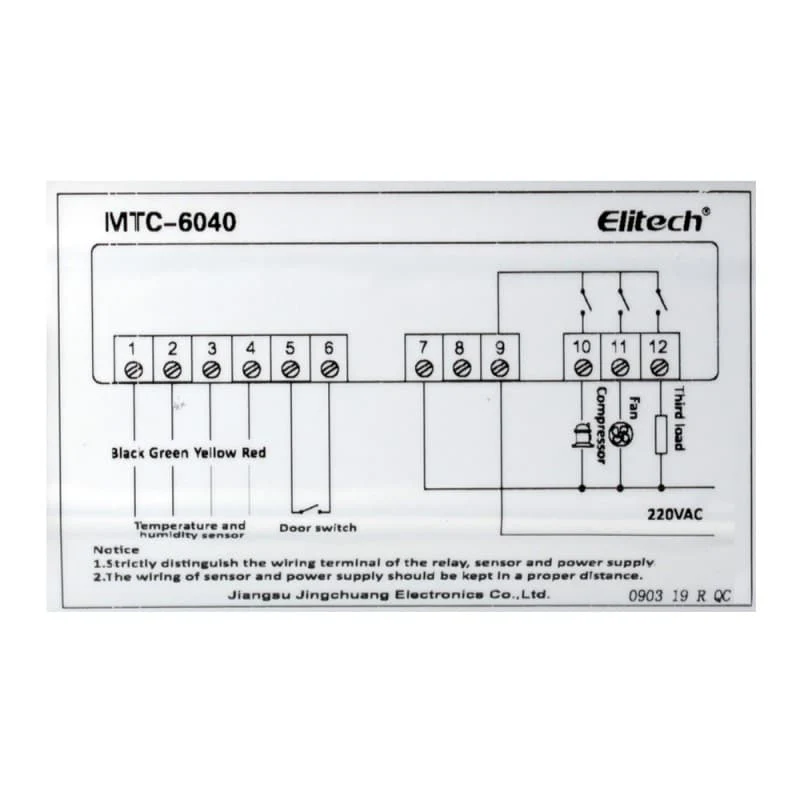

Three-way control outputs: compressor, fan, third relay ( 0: no use, 1: light, 2: humidity control, 3: alarm relay)

Elitech MTC-6040 Parameter

Model MTC-6040
Operating Voltage 220-240VAC, 50/60HZ
Temperature Measurement Range -40℃-50℃
Temperature Control Range -50℃-50℃
Temperature Measurement Accuracy ±1℃
Temperature Display Resolution 0.1℃
Humidity Display Range 0%RH-100%RH
Humidity Accuracy ±3%RH (25℃ )
Humidity Display Resolution 1
Rated Current of Output Relay (Compressor) 16A
Rated Current of Output Relay (Fan) 7A
Rated Current of Output Relay (Third Relay) 7A
Front panel waterproof level IP65

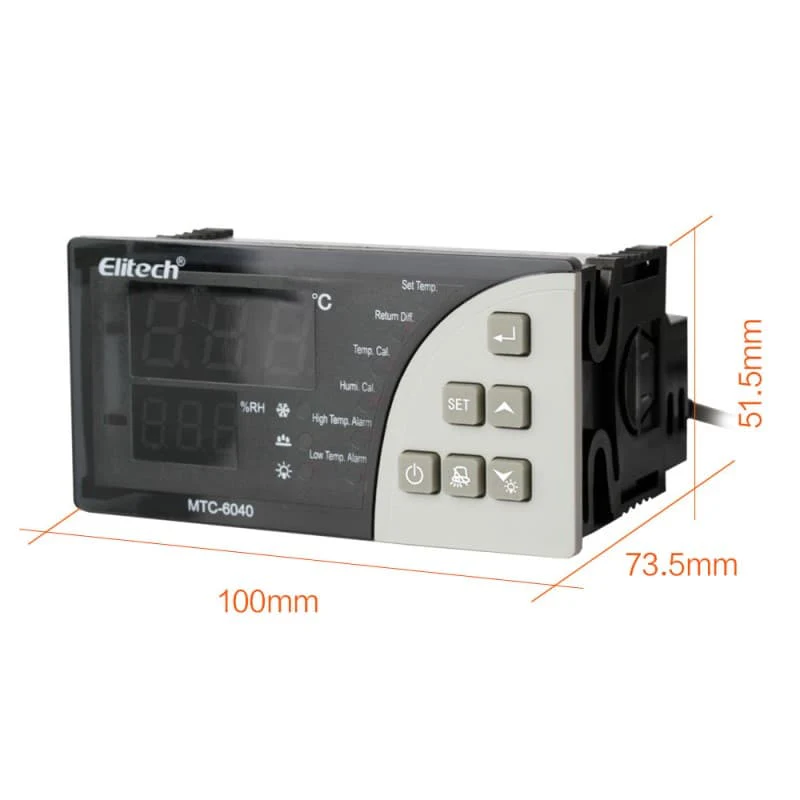

Product Dimension 100*51.5*73.5 (mm)



Elitech MTC-6040 Temperature and Humidity Controller User Manual (PDF)

Select Quantity
Select stock in
From $6.43

Original: $18.38

-65%
Elitech MTC-6040 Temperature and Humidity Controller with Cooling, Fan, Humidity/ Lighting/ Alarm Control Output—

$18.38

$6.43

Product Information

Shipping & Returns

Description

 // Not Available in the EU *

Elitech MTC-6040 Temperature and Humidity Controller are widely used in cool cabinets, medicine cabinets, foodstuff freezers, agricultural greenhouses, medicine refrigerators, etc.

Three-way control outputs: compressor, fan, third relay ( 0: no use, 1: light, 2: humidity control, 3: alarm relay)

Elitech MTC-6040 Parameter

Model MTC-6040
Operating Voltage 220-240VAC, 50/60HZ
Temperature Measurement Range -40℃-50℃
Temperature Control Range -50℃-50℃
Temperature Measurement Accuracy ±1℃
Temperature Display Resolution 0.1℃
Humidity Display Range 0%RH-100%RH
Humidity Accuracy ±3%RH (25℃ )
Humidity Display Resolution 1
Rated Current of Output Relay (Compressor) 16A
Rated Current of Output Relay (Fan) 7A
Rated Current of Output Relay (Third Relay) 7A
Front panel waterproof level IP65
Product Dimension 100*51.5*73.5 (mm)



Elitech MTC-6040 Temperature and Humidity Controller User Manual (PDF)
